Friday, February 28, 2014

Enum Support in MVC 5.1



Enum support for MVC views is a new feature introduced in Asp.net MVC 5.1. If you have Enum in your model view will create a dropdown list or radio button list in the view for you.

See the example below.

Model
  1. public class MyData
  2.     {
  3.         public int Id { get; set; }
  4.
  5.         public MyEnum Enum1 { get; set; }
  6.
  7.         public MyEnum? Enum2 { get; set; }
  8.
  9.         public FlagsEnum FlagsEnum { get; set; }
  10.     }



Enum as Dropdown List



  1. <div class="form-group">
  2.          @Html.LabelFor(model => model.Enum1, new { @class = "control-label col-md-2" })
  3.          <div class="col-md-10">
  4.              @Html.EditorFor(model => model.Enum1)
  5.              @Html.ValidationMessageFor(model => model.Enum1)
  6.          </div>
  7.      </div>
  8.
  9.      <div class="form-group">
  10.          @Html.LabelFor(model => model.Enum2, new { @class = "control-label col-md-2" })
  11.          <div class="col-md-10">
  12.              @Html.EditorFor(model => model.Enum2)
  13.              @Html.ValidationMessageFor(model => model.Enum2)
  14.          </div>
  15.      </div>

Following shows the how view renders. As you can see as Enum2 member is nullable it does not have any value selected by default.

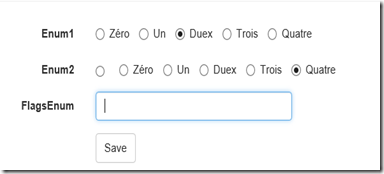

Enum as Radio button List



  1. <div class="form-group">
  2.           @Html.LabelFor(model => model.Enum1, new { @class = "control-label col-md-2" })
  3.           <div class="col-md-10">
  4.               @Html.EditorFor(model => model.Enum1, templateName: "Enum-radio")
  5.               @Html.ValidationMessageFor(model => model.Enum1)
  6.           </div>
  7.       </div>
  8.
  9.       <div class="form-group">
  10.           @Html.LabelFor(model => model.Enum2, new { @class = "control-label col-md-2" })
  11.           <div class="col-md-10">
  12.               @Html.EditorFor(model => model.Enum2, templateName: "Enum-radio")
  13.               @Html.ValidationMessageFor(model => model.Enum2)
  14.           </div>
  15.       </div>



Happy Coding !!!!!!!!!!
